| FILTER | HOME ▶ TECHNOLOGY ▶ FILTER |
 |
|

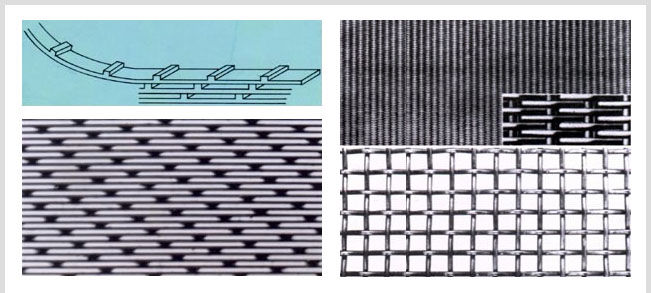

| ● Comparison of Gauze Wire Element and Notch Element |
|
 | | Notch Wire | Gauze Wire |
|
|
Notch Wire Elements are created to utilize an uneven surface which is fightly coiled and is therefore
highly effective in contamination removal. Additionally, the stainless steel wire foes not corrode.
|
|
 | | COMPARISON OF CONDITION |
|
|
| ● Operational Principle of Fuel Oil and Lublication Oil Filter |
|
|
|

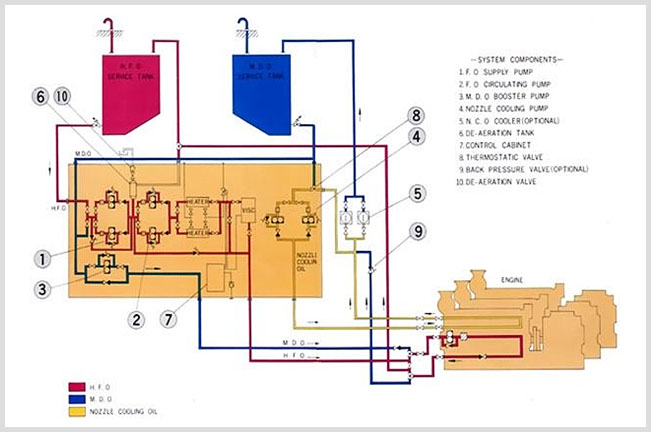

| ● Scatch of Oil System for Pressure |
|
|
|

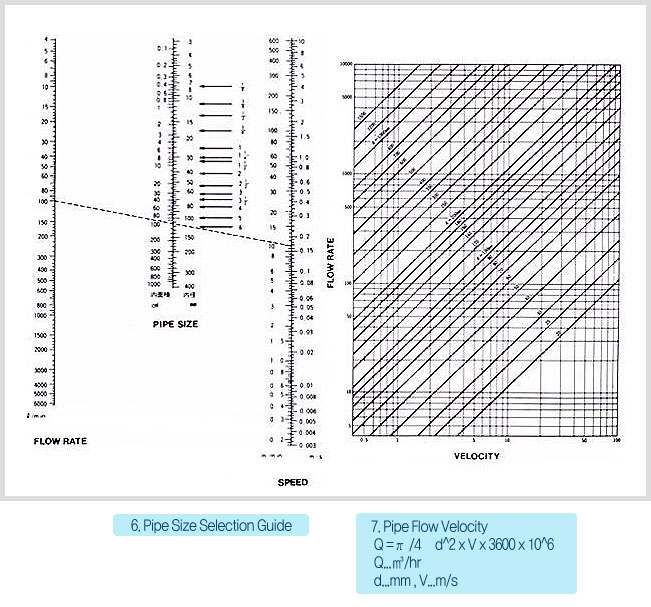

| ● Chart relevant to Pipe |
|
|
|
| ● Chemical Component of Stainless Steel Wire |
|
| STEEL |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
기타 |
| KOS |
KS |
JIS |
AISI |
DIN |
BS |
| K302 |
STS302 |
SUS302 |
AISI302 |
1.431 |
302S25 |
0.15
below |
1.00
below |
2.00
below |
0.045
below |
0.030
below |
8.00
~10.00 |
17.00
~19.00 |
|
| 303 |
303 |
303 |
303 |
1.4305 |
303S21 |
" |
" |
" |
0.20
below |
0.15
below |
" |
" |
|
| 303C |
- |
- |
- |
- |
- |
" |
" |
" |
" |
" |
" |
" |
Cu2.50
~3.50 |
| 304 |
304 |
304 |
304 |
1.4301 |
304S16 |
0.08
below |
" |
" |
0.045
below |
0.030
below |
8.00
~10.50 |
18.00
~20.00 |
|
| 304L |
304L |
304L |
304L |
1.4306 |
304S12 |
0.03
below |
" |
" |
" |
" |
9.00
~13.00 |
" |
|
| 304HC |
304J3 |
304J3 |
- |
- |
- |
0.08
below |
1.00
below |
2.00
below |
0.045
below |
0.030
below |
8.00
~10.50 |
17.00
~19.00 |
Cu1.00
~3.00 |
| 305 |
305 |
305 |
305 |
1.4303 |
305S19 |
0.12
below |
" |
" |
" |
" |
10.50
~13.00 |
" |
|
| 310S |
310S |
310S |
310S |
- |
- |
0.08
below |
1.50
below |
" |
" |
" |
19.00
~22.00 |
24.00
~26.00 |
|
| 314 |
- |
- |
314 |
- |
- |
0.25
below |
1.50
~3.00 |
" |
" |
" |
" |
23.00
~26.00 |
Mo2.00
~3.00 |
| 316 |
316 |
316 |
316 |
1.4401 |
316S16 |
0.08
below |
1.00
below |
" |
" |
" |
10.00
~14.00 |
16.00
~18.00 |
" |
| 316L |
316L |
316L |
316L |
1.4404 |
316S12 |
0.03
below |
" |
" |
" |
" |
12.00
~15.00 |
" |
Cu3.00
~4.00 |
| XM-7 |
XM-7 |
XM-7 |
XM-7 |
1.4567 |
- |
0.08
below |
" |
" |
" |
" |
8.50
~10.50 |
17.00
~19.00 |
|
| KOS-92 |
- |
- |
- |
- |
- |
0.10
below |
" |
9.00
~10.00 |
" |
" |
5.00
~6.00 |
" |
|
| 410 |
410 |
410 |
410 |
1.4006 |
410S21 |
0.15
below |
" |
1.00
below |
0.040
below |
" |
- |
11.50
~13.50 |
|
| 420J2 |
420J2 |
420J2 |
420 |
1.4021 |
420S45 |
0.26
~0.40 |
" |
" |
" |
" |
- |
12.00
~14.00 |
|
| 420F |
420F |
420F |
420F |
- |
- |
" |
" |
1.25
below |
0.060
below |
0.15
below |
- |
" |
|
| 430 |
430 |
430 |
430 |
1.4016 |
430S15 |
0.12
below |
0.75
below |
1.00
below |
0.040
below |
0.030
below |
- |
16.00
~18.00 |
|
| 434A |
434 |
434 |
434 |
- |
- |
" |
1.00
below |
" |
" |
" |
- |
" |
Cu1.20
below |
| 631J1 |
631J1 |
631J1 |
631 |
1.4568 |
- |
0.09
below |
" |
" |
" |
" |
7.00
~8.50 |
" |
Al0.75
~1.50 |
|
|
| ● Comparison Chart of Physical Component |
|
| Metal & Steel |
specific
gravity
g/㎠ |
Brinell
haedness
HB |
tensile
stength
kgf/㎟ |
elongation
% |
melting
temp.
℃ |
heat
conductivity
cal/㎝
sec℃ |
average
coefficient
of thermal
expansion
x10^-6 |
specific
heat
cal/g℃ |
natural
electric
resistance
μΩ-㎝ |
13Cr
stainless steel
K410 |
7.75 |
150 |
53 |
30 |
1,480
~1,530 |
0.06 |
9.9 |
0.11 |
87 |
18Cr
stainless steel
K430 |
7.7 |
150 |
53 |
30 |
1,430
~1,510 |
0.062 |
10.4 |
0.11 |
60 |
18-8
stainless steel
k304 |
7.93 |
150 |
60 |
60 |
1,400
~1,450 |
0.039 |
17.3 |
0.12 |
72 |
18-12-Mo
stainless steel
K316 |
7.98 |
150 |
59 |
50 |
1,370
~1,400 |
0.039 |
16 |
0.12 |
74 |
25-20
stainless steel
K310 |
7.98 |
185 |
67 |
50 |
1,400
~1,450 |
0.034 |
15.8 |
0.12 |
90 |
| inconel |
8.51 |
130-170 |
62 |
40 |
1,395
~1,425 |
0.04 |
11.5 |
0.11 |
98 |
| aluminium |
2.71 |
25 |
7 |
35 |
660 |
0.49 |
23.5 |
0.22 |
2.9 |
| copper |
8.96 |
- |
22 |
60 |
1,083 |
0.94 |
16.7 |
0.092 |
1.67 |
| 70/30 brass |
8.54 |
(HRB60) |
30 |
50 |
915
~950 |
0.37 |
19 |
0.09 |
6 |
| 60/40 brass |
8.4 |
- |
37 |
38 |
890
~905 |
0.32 |
20 |
0.09 |
5 |
hosphor
bronze |
8.9 |
(HRB26) |
35.5 |
65 |
920
~1,060 |
0.2 |
17 |
0.09 |
9.6 |
German
silver |
8.73 |
(HRB40) |
45 |
40 |
1,070
~1,110 |
0.11 |
16 |
0.09 |
29 |
| monel |
8.83 |
120
~150 |
56 |
45 |
1,300
~1,350 |
0.06 |
14.6 |
0.13 |
49 |
| titanium |
4.4 |
110
~160 |
47 |
15 |
1600 |
0.04 |
9 |
0.13 |
47 |
| nickel |
8.9 |
90
~120 |
45 |
50 |
1,434
~1,445 |
0.14 |
12.8 |
0.105 |
6.6 |
| purity iron |
7.87 |
56
~80 |
20
~28 |
30
~60 |
1,539 |
0.175 |
11.7 |
0.11 |
10.2 |
carbon
steel
0.05%C |
7.86 |
110 |
32 |
40 |
1,500 |
0.17 |
11.7 |
0.11 |
10.7 |
carbon
steel
0.2%C |
7.85 |
145 |
51 |
31 |
1,470
~1,490 |
0.125 |
11.7 |
0.11 |
14.5 |
carbon
steel
0.4%C |
7.84 |
190 |
66 |
25 |
1,390
~1,450 |
0.106 |
11.3 |
0.11 |
20 |
carbon
steel
0.8%C |
7.83 |
205 |
70 |
12 |
1,330
~1,450 |
0.103 |
11 |
0.11 |
20.4 |
|
|
| ● Stainless Mesh & Screen |
|

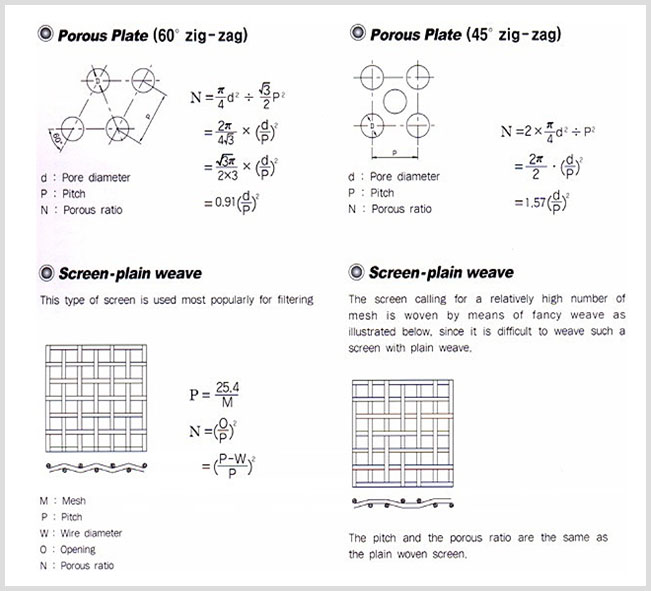

| ■ Porous Plate |
|
The screen of the filter element adopted to our models has the reinforced porous plate(60 degree) as a supporting plate. The porous plate is generally produced by means of punching. In this case, the relation among the bigger size(diameter), pitch and plate thickness generally make t≤P-d.
If porous plate requires bigger porous ratio against plate thickness, this plate can also be available. |
|
|
|
| ■ Plain weave |
|
| Mesh |
Pitch
(mm) |
S.W.G |
Wire gauge
(mmDia) |
Aperture of mesh
(mm) |
Void ratio
(%) |
| 2 |
12.704 |
12
14
16
18 |
2.642
2.032
1.626
1.219 |
10.06
10.67
11.07
11.46 |
62.7
70.6
76.0
81.7 |
| 3 |
8.466 |
12
14
16
18 |
2.642
2.032
1.626
1.219 |
5.8243
6.4343
6.8403
7.2473 |
47.3
57.7
65.3
73.3 |
| 4 |
6.350 |
15
16
18
20 |
1.829
1.626
1.219
0.914 |
4.5208
4.7238
5.1308
5.4358 |
50.7
55.4
65.3
73.3 |
| 5 |
5.080 |
15
16
18
20
21 |
1.829
1.626
1.219
0.914
0.813 |
3.2508
3.4538
3.8608
4.1658
4.2668 |
41.0
46.2
57.8
67.2
70.6 |
| 6 |
4.233 |
16
17
18
20
22
24 |
1.626
1.422
1.219
0.714
0.711
0.559 |
2.6072
2.8112
3.0142
3.3192
3.5222
3.7642 |
38.0
44.1
50.7
61.5
69.3
75.4 |
| 7 |
3.629 |
17
18
20
22
23 |
1.422
1.219
0.914
0.711
0.610 |
2.2064
2.4094
2.7144
2.9174
3.0184 |
37.0
44.1
56.0
64.7
69.3 |
| 8 |
3.175 |
18
20
21
22
24
26 |
1.219
0.914
0.813
0.711
0.559
0.457 |
1.9559
2.2609
2.3619
2.4639
2.6159
2.7179 |
37.9
50.7
55.4
60.2
67.9
73.3 |
| 9 |
2.822 |
19
20
22
24
26
28 |
1.016
0.914
0.711
0.559
0.457
0.3759 |
1.8061
1.9081
2.1111
2.2631
2.3651
2.4461 |
40.8
45.6
55.8
64.2
70.1
74.6 |
| 10 |
2.540 |
20
21
22
24
26
28 |
0.914
0.813
0.711
0.559
0.457
0.376 |
1.6259
1.7269
1.8289
1.9809
2.0829
2.1640 |
41.0
46.2
51.8
60.8
67.2
72.5 |
| 12 |
2.1187 |
22
23
24
25
26
28 |
0.711
0.610
0.559
0.508
0.457
0.376 |
1.4056
1.5066
1.5576
1.6086
1.6596
1.7407 |
44.0
50.6
54.1
57.7
61.4
67.6 |
| 14 |
1.1843 |
22
24
26
28
30
32 |
0.711
0.559
0.457
0.376
0.315
0.274 |
1.1032
1.2552
1.3572
1.4383
1.4992
1.5399 |
36.9
47.8
55.9
62.8
68.2
72.0 |
| 16 |
1.5375 |
25
26
27
28
30
32 |
0.508
0.457
0.4166
0.376
0.315
0.2743 |
1.0795
1.1305
1.1709
1.2116
1.2725
1.3132 |
46.2
50.7
54.4
58.3
64.3
68.4 |
| 18 |
1.4111 |
24
25
26
28
30
32 |
0.559
0.508
0.457
0.376
0.315
0.2743 |
0.8520
0.9031
0.9541
1.0351
1.0960
1.1367 |
36.4
40.9
45.6
53.7
60.2
64.7 |
| 20 |
1.270 |
25
26
28
30
32 |
0.508
0.457
0.376
0.315
0.274 |
0.7620
0.8130
0.8940
0.8550
0.9957 |
36.0
41.0
49.6
56.5
61.5 |
| 24 |
1.0583 |
26
27
28 |
0.457
0.417
0.376 |
0.6013
0.6417
0.6824 |
32.1
36.6
41.4 |
|
|
| ■ Patterned weave |
|
| Mesh |
Pitch
(mm) |
S.W.G |
Wire gauge
(mmDia) |
Aperture of mesh
(mm) |
Void ratio
(%) |
| 24 |
1.0583 |
29
30
31
32 |
0.3454
0.3150
0.2946
0.2743 |
0.7129
0.7433
0.7637
0.7840 |
45.4
49.1
51.8
54.6 |
| 28 |
0.9071 |
28
30
32
34 |
0.3759
0.3150
0.2743
0.2337 |
0.5312
0.5921
0.6328
0.6734 |
34.2
42.6
48.6
55.1 |
| 30 |
0.8467 |
31
32
33
34 |
0.2946
0.2743
0.2540
0.2337 |
0.5520
0.5723
0.5926
0.6129 |
42.4
45.6
48.9
52.3 |
| 32 |
0.7938 |
31
32
33
34 |
0.2946
0.2743
0.2540
0.2337 |
0.4991
0.5194
0.5397
0.5600 |
37.4
42.6
46.9
49.6 |
| 36 |
0.7054 |
31
32
33
34 |
0.2946
0.2743
0.2540
0.2337 |
0.4109
0.4312
0.4515
0.4718 |
34.0
37.5
41.1
44.8 |
| 40 |
0.6350 |
32
33
34
35
36 |
0.2743
0.2540
0.2337
0.2134
0.1930 |
0.3607
0.3810
0.4013
0.4216
0.4420 |
32.3
36.0
39.9
44.1
48.4 |
| 50 |
0.508 |
33
34
35
36
37
38 |
0.2540
0.2337
0.2134
0.1930
0.1727
0.1524 |
0.2540
0.2743
0.2946
0.3150
0.3353
0.3556 |
25.0
29.2
33.6
38.4
43.6
49.0 |
| 60 |
0.4233 |
35
36
37
38
39 |
0.2134
0.1930
0.1727
0.1524
0.1321 |
0.2099
0.2303
0.2506
0.2709
0.2912 |
24.8
29.8
35.3
41.2
47.6 |
| 70 |
0.3629 |
36
37
38
39
40 |
0.1930
0.1727
0.1524
0.1321
0.1219 |
0.1698
0.1901
0.2104
0.2307
0.2409 |
22.0
27.6
33.8
40.6
44.2 |
| 80 |
0.3175 |
37
38
39
40
41 |
0.1727
0.1524
0.1321
0.1219
0.1118 |
0.1448
0.1651
0.1854
0.1956
0.2057 |
20.8
27.0
34.1
37.9
42.0 |
| 90 |
0.2822 |
39
40
41
42 |
0.1321
0.1219
0.1118
0.1016 |
0.1501
0.1603
0.1704
0.1806 |
28.2
32.1
36.4
38.6 |
| 100 |
0.254 |
39
40
41
42 |
0.1321
0.1219
0.1118
0.1016 |
0.1219
0.1321
0.1422
0.1524 |
23.0
27.0
31.4
36.0 |
| 110 |
0.2309 |
41
42
43
44 |
0.1118
0.1016
0.0914
0.0813 |
0.1173
0.1293
0.1395
0.1496 |
26.7
31.5
36.6
42.1 |
| 120 |
0.2116 |
42
43
44
45 |
0.1016
0.0914
0.0813
0.0711 |
0.1101
0.1203
0.1304
0.1406 |
26.6
31.8
37.5
43.6 |
| 130 |
0.1954 |
42
43
44
45 |
0.1016
0.0914
0.0813
0.0711 |
0.0938
0.1040
0.1141
0.1243 |
23.1
28.4
34.2
40.6 |
| 140 |
0.1814 |
44
45
46 |
0.1001
0.1103
0.1204 |
0.1001
0.1103
0.1204 |
29.8
36.2
43.3 |
| 160 |
0.15875 |
45
46
47 |
0.0876
0.0977
0.1079 |
0.0876
0.0977
0.1079 |
30.5
37.9
46.2 |
| 180 |
0.1411 |
46
47 |
0.0801
0.0903 |
0.0801
0.0903 |
33.2
40.9 |
| 200 |
0.1270 |
47
48 |
0.0762
0.0864 |
0.0762
0.0864 |
36.0
46.2 |
| 250 |
0.1016 |
48 |
0.0406 |
0.061 |
36.0 |
|
|

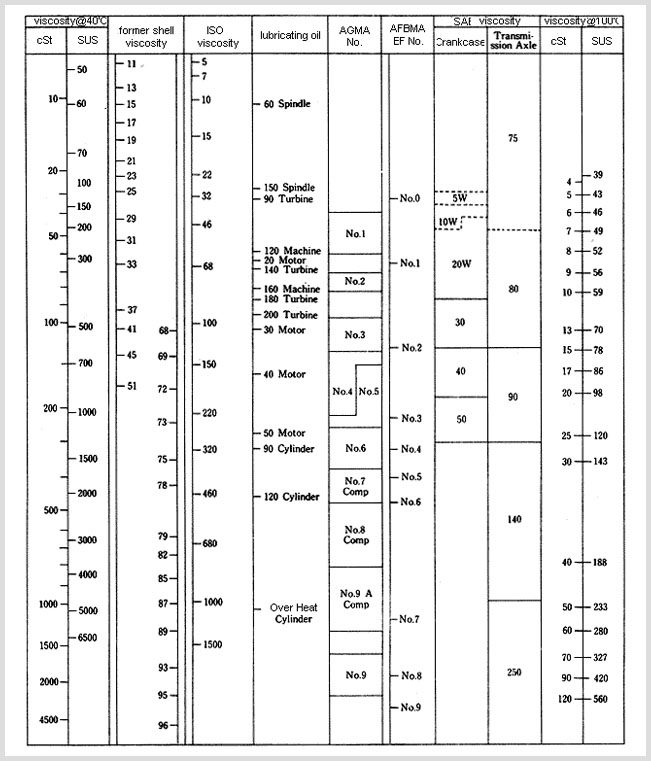

| ● Content for Viscosity |
|
|
|
* SAE : Spciety of Automotive Enginess
* AGMA : American Gear Manufactures Association
* AFBMA : Anti-Friction Bearing Manufactuers Association |
|
|
| ■ Viscosity |
|
Internal frictional force provides resistance to the flow of liquids.
Theoretically, there is absolute viscosity and kinematic viscosity where their mutual relationship is
< Kenematic viscosity in t℃，= absolute viscosity in t℃. / density in t℃. > |
|
|
| 1. | cSt (Kinematic Viscosity |
| indication of kinematic viscosity in C.G.S. units represents stoke, and CSt is 1/100 of stoke. The measuring temperature is 40℃ and 100℃ in the ISO (International Organization for Standards) viscosity classification This classification is universally accepted. |
| 2. | Eº (Engler Viscosity) |
| It is that efflux time of a 200cc sample divided by efflux time of 20℃ water observed at the temperature of 20℃, 50℃ and 100℃ and is mainly used in Europe. |
| 3. | SUS or SSU (Saybolt Universal Viscosity) |
| SUS or SSU (Saybolt universal viscosity) It observes efflux time (in seconds) of 60cc of ubricating oil. The observation temperatures are 100℉, 130℉ and 210℉ and is used mainly in America. |
| 4. | Redwood Viscosity |
| - Redwood #1 : It is efflux time of 50cc sample, The observation temperatures are 30℃,50,80 and 100℃ used
mainly.
- Redwood #2 : Observed efflux lime of 50cc sample in 0℃ |
|
|
